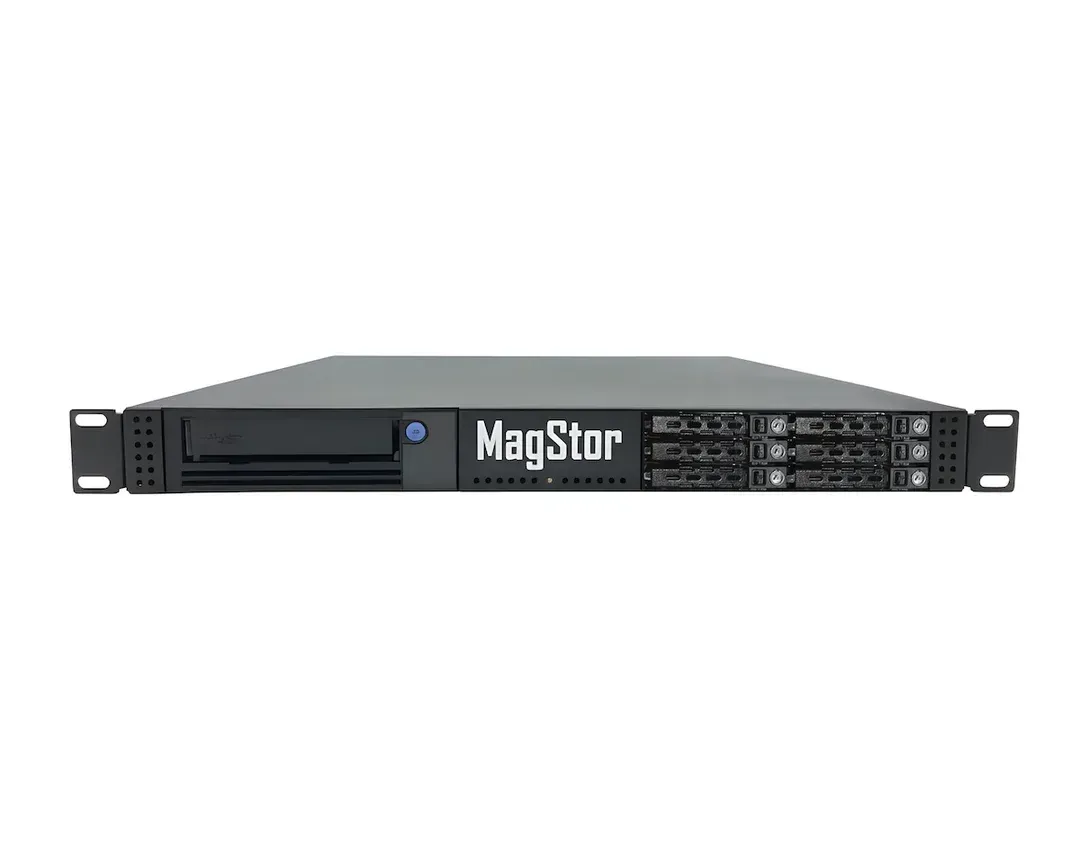

MagStor 1U LTO9 RAID Thunderbolt 3 Rack Mount LRU w/ 1x LTO-9 TAA

• Featuring MagStor’s patented* Thunderbolt-3 to LTO design with SSD RAID.
• Hardware based RAID using a single TB3 interface with previously unattainable ingest speeds to LTO
• Support up to 6 SATA SSD Drives with RAID levels 0,1,3,5,6,10,and Single pass through disk support
• Dual Core ARM A15 1.6GHz processor with RAID On Chip
• 8GB DDR4-2666 cache memory with ECC protection
• Broad operating support including Windows, Linux, FreeBSD, macOS and VMware
• Support for LTO transport layer retries (TLR) for error handling
• MagStor Single Admin Portal for Windows and Mac allows Full device configuration for RAID setup
• Carrying handle included for onsite and studio use
• SSD drives - BYOD, or order with the drive, we will configure them as RAID-5 prior to shipment
• Ships with Hedge Canister LTFS Software and OffShoot
• Compatible with NanoPure Media™
• Optional Rugged Carrying case available for secure transport
• 3 year parts and labor RTB warranty



Unmatched performance for video production needs

The MagStor LRU-9 offers unmatched ingest speeds compared to competitive solutions:

Typical LRU speeds are shown below:
2418Mb/s Write with 6x Samsung EVO 870 SSD at RAID 0

1753Mb/s Write with 6x Samsung EVO 870 SSD at RAID 5

Features

• LTO9 Tape Drive,
  • 18TB, up to 300 MB/s Read/Write Speeds (Native)
• 6 SATA SSD Drives Bay with Hardware RAID levels 0,1,3,5,6,10,and Single pass through disk support
• 30 Year LTO Media Archive Life
• Built-in PSU, no bulky adapters needed
• 2x Thunderbolt™ 3 Ports for Daisy Chain
• TAA Compliant (Tape Drives Made in Japan)
• 3 Year Warranty
• Apple™ Certified
• Intel™ Certified

Technical Specifications

Interface

• Two Thunderbolt™ 3 40 Gb/s interface ports allow connection to a MAC or PC with a Thunderbolt™ 3 compatible USB-C Port

Power Supply

• 100/240 VAC 50/60 Hz, 300W GOLD Rated auto switching

Dimensions & Weight

• 33 x 23 x 11 inches (L x H x W) / 24 lbs (w/o SSD drives)

Software Compatibility:

• Hedge Canister, OffShoot (Included)
• IperiusBackup
• myLTO
• PreRollPost
• Retrospect
• StorageDNA
• Third-Party TAR based backup software, Acronis etc.
• Veeam
• YoYotta LTFS

Supported Operating Systems :

• MAC OSX 10.12 or higher
• Intel or M1, M2 CPU
• Windows 10, 11

Includes a Free license for Hedge LTFS software “Canister” and OffShoot Software.

When ordering complete with SSD drives

Configured RAID 5 using 6x Samsung EVO 870 SATA III 2.5” SSD.
5-year warranty on the SSD drives *

RAID 5 capacity, 6 drives.
Using 4TB Dr
